Pipe Fittings




Stainik Piping Solution manufactures, exports, and supplies pipe fittings all over the world. Stainless steel, mild steel, carbon steel, duplex steel, super duplex steel, and nickel alloys are among the materials that can be used to make and supply pipe fittings. Only the best quality pipe fittings are used, and they undergo extensive internal inspections to check for craftsmanship and quality issues. The pipes we manufacture are used in many homes, oil refineries, seawater cooling devices, gas scrubbing plants, pulp and paper industries, acetic, phosphoric and sulphuric acid processing plants, research and development departments and more because our pipe fittings are made to ensure a tight, leakproof fit.

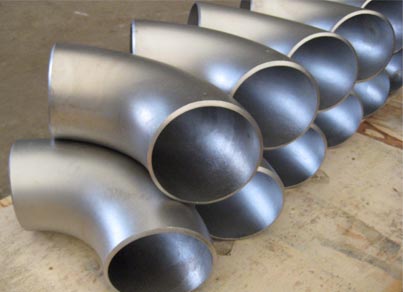

Elbow


  • Elbows Size: 1/2" to 24"
  • Elbows Standard: ANSI B16.9, ANSI B16.28, ASME B16.25, ASTM A234, ASTM A403, DIN 2605, DIN 2616
  • Elbows Types: 90 Degree Elbows, 45 Degree Elbows, Long Radius Elbows, Short Radius Elbows, Reducing Elbows
  • Elbows Material Specification: ASTM, ASME, DIN, ISO, BS, JIS
  • Wall Thickness: Sch. 5S to Sch. XXS
  • ELBOWS GRADE:
  • Stainless Steel Elbows: ASTM A403 Gr. WP304, WP304L, WP316, WP316L, WP321, WP347, WP904L
  • Mild Steel Elbows: ASTM A234 Gr. WPB, IS 2062
  • Carbon Steel Elbows: ASTM A234 Gr. WPB, A105
  • Duplex Steel Elbows: ASTM / ASME A/SA 182 F 51, F 53, F 55, F 60, F 61
  • Super Duplex Steel Elbows: ASTM A403 Gr. WP51 (UNS S31803), WP53 (UNS S32750), WP55 (UNS S32760)
  • Nickel Alloy Elbows: ASTM / ASME SB 160, SB 472
  • Grade: HASTELLOY C 276, HASTELLOY C22, MONEL 400, ALLOY 20, SMO 254, INCO 825, INCO 625, INCO 600, INCO 800, 20CB3, NI-200, CU/NI 90/10, CU/NI 70/30
  • Nominal Diameter Outside Diameter Center to End Center to Center Back to Face
    45°Elbow 90°Elbow 180°Elbow
    B A O K
    DN NPS (Inches) Series B (mm) Long Radius(mm) Long Radius(mm) Long Radius(mm) Long Radius(mm) Long Radius(mm) Long Radius(mm) Long Radius(mm) Long Radius(mm)

    15

    1/2

    21.3

    18

    16

    38

    -

    76

    -

    48

    -

    20

    3/4

    26.9

    25

    19

    38

    -

    76

    -

    51

    -

    25

    1

    33.7

    32

    22

    38

    25

    76

    51

    56

    41

    32

    1.1/4

    42.4

    38

    25

    48

    32

    95

    64

    70

    52

    40

    1.1/2

    48.3

    45

    29

    57

    38

    114

    76

    83

    62

    50

    2

    60.3

    57

    35

    76

    51

    152

    102

    106

    81

    65

    2.1/2

    76.1(73)

    76

    44

    95

    64

    190

    127

    132

    100

    80

    3

    88.9

    89

    51

    114

    76

    229

    152

    159

    121

    90

    3.1/2

    101.6

    -

    57

    133

    89

    267

    178

    184

    140

    100

    4

    114.3

    108

    64

    152

    102

    305

    203

    210

    159

    125

    5

    139.7

    133

    79

    190

    127

    381

    254

    262

    197

    150

    6

    168.3

    159

    95

    229

    152

    457

    305

    313

    237

    200

    8

    219.1

    219

    127

    305

    203

    610

    406

    414

    313

    250

    10

    273

    273

    159

    381

    254

    762

    508

    518

    391

    300

    12

    323.9

    325

    190

    457

    305

    914

    610

    619

    467

    350

    14

    355.6

    377

    222

    533

    356

    1067

    711

    711

    533

    400

    16

    406.4

    426

    254

    610

    406

    1219

    813

    813

    610

    450

    18

    457.2

    478

    286

    686

    457

    1372

    914

    914

    686

    500

    20

    508

    529

    318

    762

    508

    1524

    1016

    1016

    762

    550

    22

    559

    -

    343

    838

    559

    1676

    1118

    1118

    838

    600

    24

    610

    630

    381

    914

    610

    1829

    1219

    1219

    914

    650

    26

    660

    -

    406

    991

    660

    1982

    1320

    -

    -

    700

    28

    711

    720

    438

    1067

    711

    2134

    1422

    -

    -

    750

    30

    762

    -

    470

    1143

    762

    2286

    1524

    -

    -

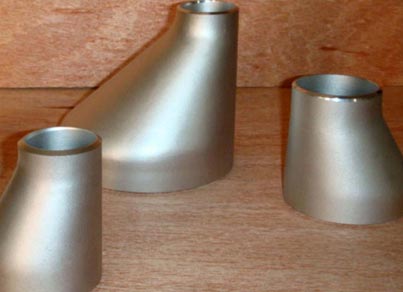

    Reducer


  • Reducers Size: 1/2" to 24"
  • Reducers Standard: ANSI B16.9, ANSI B16.28, ASME B16.25, ASTM A234, ASTM A403, DIN 2616, DIN 2617
  • Reducers Types: Concentric Reducers, Eccentric Reducers
  • Reducers Material Specification: ASTM, ASME, DIN, ISO, BS, JIS
  • Wall Thickness: Sch. 5S to Sch. XXS
  • REDUCERS GRADE:
  • Stainless Steel Reducers: ASTM A403 Gr. WP304, WP304L, WP316, WP316L, WP321, WP347, WP904L
  • Mild Steel Reducers: ASTM A234 Gr. WPB, IS 2062
  • Carbon Steel Reducers: ASTM A234 Gr. WPB, A105
  • Duplex Steel Reducers: ASTM / ASME A/SA 182 F 51, F 53, F 55, F 60, F 61
  • Super Duplex Steel Reducers: ASTM A403 Gr. WP51 (UNS S31803), WP53 (UNS S32750), WP55 (UNS S32760)
  • Nickel Alloy Reducers: ASTM / ASME SB 160, SB 472
  • Grade: HASTELLOY C 276, HASTELLOY C22, MONEL 400, ALLOY 20, SMO 254, INCO 825, INCO 625, INCO 600, INCO 800, 20CB3, NI-200, CU/NI 90/10, CU/NI 70/30
  • Nominal Diameter

    Outside Diameter

    End to End
    D1*D2
    DN

    NPS

    (Inches)

    Series A

    (mm)

    "H"

    (mm)

    20×15

    3/4×1/2

    26.9×21.3

    38

    20×10

    3/4×3/8

    26.9×17.3

    38

    25×20

    1×3/4

    33.7×26.9

    51

    25×15

    1×1/2

    33.7×21.3

    51

    32×25

    1.1/4×1

    42.4×33.7

    51

    32×20

    1.1/4×3/4

    42.4×26.9

    51

    32×15

    1.1/4×1/2

    42.4×21.3

    51

    40×32

    1.1/2×1.1/4

    48.3×42.4

    64

    40×25

    1.1/2×1

    48.3×33.7

    64

    40×20

    1.1/2×3/4

    48.3×26.9

    64

    40×15

    1.1/2×1/2

    48.3×21.3

    64

    50×40

    2×1.1/2

    60.3×48.3

    76

    50×32

    2×1.1/4

    60.3×42.4

    76

    50×25

    2×1

    60.3×33.7

    76

    50×20

    2×3/4

    60.3×26.9

    76

    65×50

    2.1/2×2

    73.0×60.3

    89

    65×40

    2.1/2×1.1/2

    73.0×48.3

    89

    65×32

    2.1/2×1.1/4

    73.0×42.4

    89

    65×25

    2.1/2×1

    73.0×33.7

    89

    80×65

    3×2.1/2

    88.9×73.0

    89

    80×50

    3×2

    88.9×60.3

    89

    80×40

    3×1.1/2

    88.9×48.3

    89

    80×32

    3×1.1/4

    88.9×42.4

    89

    90×80

    3.1/2×3

    101.6×88.9

    102

    90×65

    3.1/2×2.1/2

    101.6×73.0

    102

    90×50

    3.1/2×2

    101.6×60.3

    102

    90×40

    3.1/2×1.1/2

    101.6×48.3

    102

    90×32

    3.1/2×1.1/4

    101.6×42.4

    102

    100×90

    4×3.1/2

    114.3×101.6

    102

    100×80

    4×3

    114.3×88.9

    102

    100×65

    4×2.1/2

    114.3×73.0

    102

    100×50

    4×2

    114.3×60.3

    102

    100×40

    4×1.1/2

    114.3×48.3

    102

    125×100

    5×4

    141.3×114.3

    127

    125×90

    5×3.1/2

    141.3×101.6

    127

    125×80

    5×3

    141.3×88.9

    127

    125×65

    5×2.1/2

    141.3×73.0

    127

    125×50

    5×2

    141.3×60.3

    127

    150×125

    6×5

    168.3×141.3

    140

    150×100

    6×5

    168.3×114.3

    140

    150×90

    6×3.1/2

    168.3×101.6

    140

    150×80

    6×3

    168.3×88.9

    140

    150×65

    6×2.1/2

    168.3×73.0

    140

    200×150

    8×6

    219.1×168.3

    152

    200×125

    8×5

    219.1×141.3

    152

    200×100

    8×4

    219.1×114.3

    152

    200×90

    8×3.1/2

    219.1×101.6

    152

    250×200

    10×8

    273.0×219.1

    178

    250×150

    10×6

    273.0×168.3

    178

    250×125

    10×5

    273.0×141.3

    178

    250×100

    10×4

    273.0×114.3

    178

    300×250

    12×10

    323.9×273.1

    203

    300×200

    12×8

    323.9×219.1

    203

    300×150

    12×6

    323.9×168.3

    203

    300×125

    12×5

    323.9×141.3

    203

    350×300

    14×12

    355.6×323.9

    330

    350×250

    14×10

    355.6×273.0

    330

    350×200

    14×8

    355.6×219.1

    330

    350×150

    14×6

    355.6×168.3

    330

    400×350

    16×14

    406.4×355.6

    356

    400×300

    16×12

    406.4×323.9

    356

    400×250

    16×10

    406.4×273.0

    356

    400×200

    16×8

    406.4×219.1

    356

    450×400

    18×16

    457×406.4

    381

    450×350

    18×14

    457×355.6

    381

    450×300

    18×12

    457×323.9

    381

    450×250

    18×10

    457×273.0

    381

    500×450

    20×18

    508×457

    508

    500×400

    20×16

    508×406.4

    508

    500×350

    20×14

    508×355.6

    508

    500×300

    20×12

    508×323.9

    508

    550×500

    22×20

    559×508

    508

    550×450

    22×18

    559×457

    508

    550×400

    22×16

    559×406.4

    508

    550×350

    22×14

    559×355.6

    508

    600×550

    24×22

    610×559

    508

    600×500

    24×20

    610×508

    508

    600×450

    24×18

    610×457

    508

    600×400

    24×22

    610×406.4

    508

    650×600

    26×24

    660×610

    610

    650×550

    26×22

    660×559

    610

    650×500

    26×20

    660×508

    610

    650×450

    26×18

    660×457

    610

    700×650

    28×26

    711×660

    610

    700×600

    28×24

    711×610

    610

    700×550

    28×22

    711×559

    610

    700×500

    28×20

    711×508

    610

    750×700

    30×28

    762×711

    610

    750×650

    30×26

    762×660

    610

    750×600

    30×24

    762×610

    610

    750×550

    30×22

    762×559

    610

    800×750

    32×30

    813×762

    610

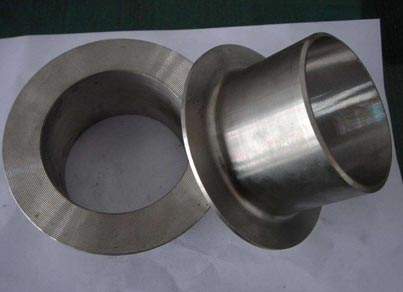

    Stub End


  • Stub Ends Size: 1/2" to 24"
  • Stub Ends Standard: ANSI B16.9, ANSI B16.28, ASME B16.25, ASTM A234, ASTM A403, DIN 2605
  • Stub Ends Types: Long Stub End, Short Stub End
  • Stub Ends Material Specification: ASTM, ASME, DIN, ISO, BS, JIS
  • Wall Thickness: Sch. 5S to Sch. XXS
  • STUB ENDS GRADE:
  • Stainless Steel Stub Ends: ASTM A403 Gr. WP304, WP304L, WP316, WP316L, WP321, WP347, WP904L
  • Mild Steel Stub Ends: ASTM A234 Gr. WPB, IS 2062
  • Carbon Steel Stub Ends: ASTM A234 Gr. WPB, A105
  • Duplex Steel Stub Ends: ASTM / ASME A/SA 182 F 51, F 53, F 55, F 60, F 61
  • Super Duplex Steel Stub Ends: ASTM A403 Gr. WP51 (UNS S31803), WP53 (UNS S32750), WP55 (UNS S32760)
  • Nickel Alloy Stub Ends: ASTM / ASME SB 160, SB 472
  • Grade: HASTELLOY C 276, HASTELLOY C22, MONEL 400, ALLOY 20, SMO 254, INCO 825, INCO 625, INCO 600, INCO 800, 20CB3, NI-200, CU/NI 90/10, CU/NI 70/30

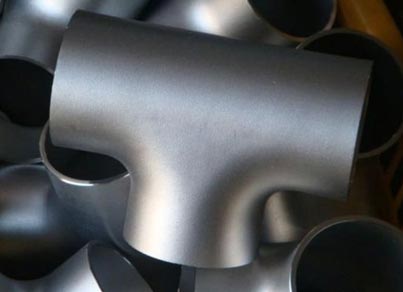

  • Tee


  • Tees Size: 1/2" to 24"
  • Tees Standard: ANSI B16.9, ANSI B16.28, ASME B16.25, ASTM A234, ASTM A403, DIN 2615
  • Tees Types: Equal Tees, Reducing Tees
  • Tees Material Specification: ASTM, ASME, DIN, ISO, BS, JIS
  • Wall Thickness: Sch. 5S to Sch. XXS
  • STUDS GRADE:
  • Stainless Steel Tees: ASTM A403 Gr. WP304, WP304L, WP316, WP316L, WP321, WP347, WP904L
  • Mild Steel Tees: ASTM A234 Gr. WPB, IS 2062
  • Carbon Steel Tees: ASTM A234 Gr. WPB, A105
  • Duplex Steel Tees: ASTM / ASME A/SA 182 F 51, F 53, F 55, F 60, F 61
  • Super Duplex Steel Tees: ASTM A403 Gr. WP51 (UNS S31803), WP53 (UNS S32750), WP55 (UNS S32760)
  • Nickel Alloy Tees: ASTM / ASME SB 160, SB 472
  • Grade: HASTELLOY C 276, HASTELLOY C22, MONEL 400, ALLOY 20, SMO 254, INCO 825, INCO 625, INCO 600, INCO 800, 20CB3, NI-200, CU/NI 90/10, CU/NI 70/30
  • Nominal Diameter Outside Diameter Center to End
    D1 D2
    DN NPS Series A Series A "C" "M"
    (Inches) (mm) (mm) (mm) (mm)

    15×15×15

    1/2 × 1/2 ×1/2

    21.3

    21.3

    25

    25

    15×15×10

    1/2×1/2×3/8

    21.3

    17.3

    25

    25

    15×15×8

    1/2×1/2×1/4

    21.3

    13.7

    25

    25

    20×20×20

    3/4×3/4×3/4

    26.9

    26.9

    29

    29

    20×20×15

    3/4×3/4×1/2

    26.9

    21.3

    29

    29

    20×20×10

    3/4×3/4×3/8

    26.9

    17.3

    29

    29

    25×25×25

    1×1×1

    33.7

    33.7

    38

    38

    25×25×20

    1×1×3/4

    33.7

    26.9

    38

    38

    25×25×15

    1×1×1/2

    33.7

    21.3

    38

    38

    32×32×32

    1.1/4×1.1/4×1.1/4

    42.4

    42.4

    48

    48

    32×32×25

    1.1/4×1.1/4×1

    42.4

    33.7

    48

    48

    32×32×20

    1.1/4×1.1/4×3/4

    42.4

    26.9

    48

    48

    32×32×15

    1.1/4×1.1/4×1/2

    42.4

    21.3

    48

    48

    40×40×40

    1.1/2×1.1/2×1.1/2

    48.3

    48.3

    57

    57

    40×40×32

    1.1/2×1.1/2×1.1/4

    48.3

    42.4

    57

    57

    40×40×25

    1.1/2×1.1/2×1

    48.3

    33.7

    57

    57

    40×40×20

    1.1/2×1.1/2×3/4

    48.3

    26.9

    57

    57

    40×40×15

    1.1/2×1.1/2×1/2

    48.3

    21.3

    57

    57

    50×50×50

    2×2×2

    60.3

    60.3

    64

    64

    50×50×40

    2×2×1.1/2

    60.3

    48.3

    64

    60

    50×50×32

    2×2×1.1/4

    60.3

    42.4

    64

    57

    50×50×25

    2×2×1

    60.3

    33.7

    64

    51

    50×50×20

    2×2×3/4

    60.3

    26.9

    64

    44

    65×65×65

    2.1/2×2/1/2×2.1/2

    73

    73

    76

    76

    65×65×50

    2.1/2×2/1/2×2

    73

    60.3

    76

    70

    65×65×40

    2.1/2×2/1/2×1.1/2

    73

    48.3

    76

    67

    65×65×32

    2.1/2×2/1/2×1.1/4

    73

    42.4

    76

    64

    65×65×25

    2.1/2×2/1/2×1

    73

    33.7

    76

    57

    80×80×80

    3×3×3

    88.9

    88.9

    86

    86

    80×80×65

    3×3×2.1/2

    88.9

    73

    86

    83

    80×80×50

    3×3×2

    88.9

    60.3

    86

    76

    80×80×40

    3×3×1.1/2

    88.9

    48.3

    86

    73

    80×80×32

    3×3×1.1/4

    88.9

    42.4

    86

    70

    90×90×90

    3.1/2×3.1/2×3.1/2

    101.6

    101.6

    95

    95

    90×90×80

    3.1/2×3.1/2×3

    101.6

    88.9

    95

    92

    90×90×65

    3.1/2×3.1/2×2.1/2

    101.6

    73

    95

    89

    90×90×50

    3.1/2×3.1/2×2

    101.6

    60.3

    95

    83

    90×90×40

    3.1/2×3.1/2×1.1/2

    101.6

    48.3

    95

    79

    100×100×100

    4×4×4

    114.3

    114.3

    105

    105

    100×100×90

    4×4×3.1/2

    114.3

    101.6

    105

    102

    100×100×80

    4×4×3

    114.3

    88.9

    105

    98

    100×100×65

    4×4×2.1/2

    114.3

    73

    105

    95

    100×100×50

    4×4×2

    114.3

    60.3

    105

    89

    100×100×40

    4×4×1.1/2

    114.3

    48.3

    105

    86

    125×125×125

    5×5×5

    141.3

    141.3

    124

    124

    125×125×100

    5×5×4

    141.3

    114.3

    124

    117

    125×125×90

    5×5×3.1/2

    141.3

    101.6

    124

    114

    125×125×80

    5×5×3

    141.3

    88.9

    124

    111

    125×125×65

    5×5×2.1.2

    141.3

    73

    124

    108

    125×125×50

    5×5×2

    141.3

    60.3

    124

    105

    150×150×150

    6×6×6

    168.3

    168.3

    143

    143

    150×150×125

    6×6×5

    168.3

    141.3

    143

    137

    150×150×100

    6×6×4

    168.3

    114.3

    143

    130

    150×150×90

    6×6×3.1/2

    168.3

    101.6

    143

    127

    150×150×80

    6×6×3

    168.3

    88.9

    143

    124

    150×150×65

    6×6×2.1/2

    168.3

    73

    143

    121

    200×200×200

    8×8×8

    219.1

    219.1

    178

    178

    200×200×150

    8×8×6

    219.1

    168.3

    178

    168

    200×200×125

    8×8×5

    219.1

    141.4

    178

    162

    200×200×100

    8×8×4

    219.1

    114.3

    178

    156

    200×200×90

    8×8×3.1/2

    219.1

    101.6

    178

    152

    250×250×250

    10×10×10

    273

    273

    216

    216

    250×250×200

    10×10×8

    273

    219.1

    216

    203

    250×250×150

    10×10×6

    273

    168.3

    216

    194

    250×250×125

    10×10×5

    273

    141.3

    216

    191

    250×250×100

    10×10×4

    273

    114.3

    216

    184

    300×300×300

    12×12×12

    323.9

    323.9

    254

    254

    300×300×250

    12×12×10

    323.9

    273

    254

    241

    300×300×200

    12×12×8

    323.9

    219.1

    254

    229

    300×300×150

    12×12×6

    323.9

    168.3

    254

    219

    300×300×125

    12×12×5

    323.9

    141.3

    254

    216

    350×350×350

    14×14×14

    355.6

    355.6

    279

    279

    350×350×300

    14×14×12

    355.6

    323.9

    279

    270

    350×350×250

    14×14×10

    355.6

    273

    279

    257

    350×350×200

    14×14×8

    355.6

    219.1

    279

    248

    350×350×150

    14×14×6

    355.6

    168.3

    279

    238

    400×400×400

    16×16×16

    406.4

    406.4

    305

    305

    400×400×350

    16×16×14

    406.4

    355.6

    305

    305

    400×400×300

    16×16×12

    406.4

    323.9

    305

    295

    400×400×250

    16×16×10

    406.4

    273

    305

    283

    400×400×200

    16×16×8

    406.4

    219.1

    305

    273

    400×400×150

    16×16×6

    406.4

    168.3

    305

    264

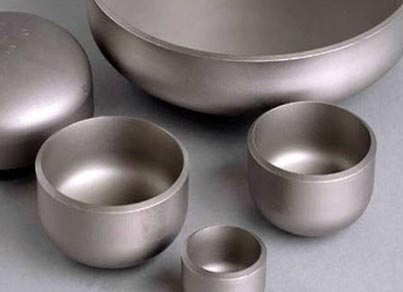

    End Cap


  • End Caps Size: 1/2" to 24"
  • End Caps Standard: ANSI B16.9, ANSI B16.28, ASME B16.25, ASTM A234, ASTM A403, DIN 2617
  • End Caps Types: Round End Caps, Square End Caps, Conical End Caps
  • End Caps Material Specification: ASTM, ASME, DIN, ISO, BS, JIS
  • Wall Thickness: Sch. 5S to Sch. XXS
  • END CAPS GRADE:
  • Stainless Steel End Caps: ASTM A403 Gr. WP304, WP304L, WP316, WP316L, WP321, WP347, WP904L
  • Mild Steel End Caps: ASTM A234 Gr. WPB, IS 2062
  • Carbon Steel End Caps: ASTM A234 Gr. WPB, A105
  • Duplex Steel End Caps: ASTM / ASME A/SA 182 F 51, F 53, F 55, F 60, F 61
  • Super Duplex Steel End Caps: ASTM A403 Gr. WP51 (UNS S31803), WP53 (UNS S32750), WP55 (UNS S32760)
  • Nickel Alloy End Caps: ASTM / ASME SB 160, SB 472
  • Grade: HASTELLOY C 276, HASTELLOY C22, MONEL 400, ALLOY 20, SMO 254, INCO 825, INCO 625, INCO 600, INCO 800, 20CB3, NI-200, CU/NI 90/10, CU/NI 70/30

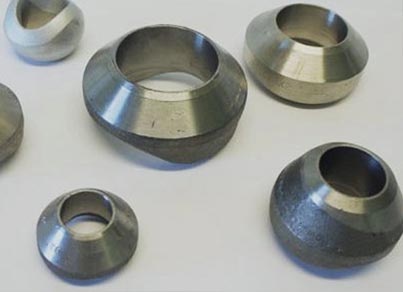

  • Weld Olet


  • Weld Olet Size: 1/2" to 24"
  • Weld Olet Standard: ANSI B16.9, ANSI B16.28, ASME B16.25, ASTM A234, ASTM A403
  • Weld Olet Types: Sockolet, Threadolet, Sweepolet, Elbolet
  • Weld Olet Material Specification: ASTM, ASME, DIN, ISO, BS, JIS
  • Wall Thickness: Sch. 5S to Sch. XXS
  • WELD OLETS GRADE:
  • Stainless Steel Weld Olet: ASTM A403 Gr. WP304, WP304L, WP316, WP316L, WP321, WP347, WP904L
  • Mild Steel Weld Olet: ASTM A234 Gr. WPB, IS 2062
  • Carbon Steel Weld Olet: ASTM A234 Gr. WPB, A105
  • Duplex Steel Weld Olet: ASTM / ASME A/SA 182 F 51, F 53, F 55, F 60, F 61
  • Super Duplex Steel Weld Olet: ASTM A403 Gr. WP51 (UNS S31803), WP53 (UNS S32750), WP55 (UNS S32760)
  • Nickel Alloy Weld Olet: ASTM / ASME SB 160, SB 472
  • Grade: HASTELLOY C 276, HASTELLOY C22, MONEL 400, ALLOY 20, SMO 254, INCO 825, INCO 625, INCO 600, INCO 800, 20CB3, NI-200, CU/NI 90/10, CU/NI 70/30

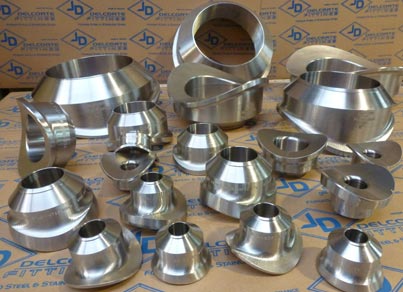

  • Sock Olet


  • Sock Olet Size: 1/2" to 24"
  • Sock Olet Standard: ANSI B16.9, ANSI B16.28, ASME B16.25, ASTM A234, ASTM A403
  • Sock Olet Types: Standard Sock Olet, Reinforced Sock Olet
  • Sock Olet Material Specification: ASTM, ASME, DIN, ISO, BS, JIS
  • Wall Thickness: Sch. 5S to Sch. XXS
  • SOCK OLETS GRADE:
  • Stainless Steel Sock Olet: ASTM A403 Gr. WP304, WP304L, WP316, WP316L, WP321, WP347, WP904L
  • Mild Steel Sock Olet: ASTM A234 Gr. WPB, IS 2062
  • Carbon Steel Sock Olet: ASTM A234 Gr. WPB, A105
  • Duplex Steel Sock Olet: ASTM / ASME A/SA 182 F 51, F 53, F 55, F 60, F 61
  • Super Duplex Steel Sock Olet: ASTM A403 Gr. WP51 (UNS S31803), WP53 (UNS S32750), WP55 (UNS S32760)
  • Nickel Alloy Sock Olet: ASTM / ASME SB 160, SB 472
  • Grade: HASTELLOY C 276, HASTELLOY C22, MONEL 400, ALLOY 20, SMO 254, INCO 825, INCO 625, INCO 600, INCO 800, 20CB3, NI-200, CU/NI 90/10, CU/NI 70/30

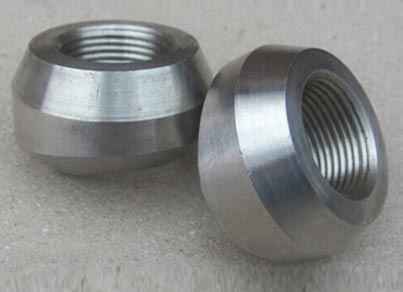

  • Thread Olet


  • Thread Olet Size: 1/2" to 24"
  • Thread Olet Standard: ANSI B16.9, ANSI B16.28, ASME B16.25, ASTM A234, ASTM A403
  • Thread Olet Types: Standard Thread Olet, Reinforced Thread Olet
  • Thread Olet Material Specification: ASTM, ASME, DIN, ISO, BS, JIS
  • Wall Thickness: Sch. 5S to Sch. XXS
  • THREAD OLETS GRADE:
  • Stainless Steel Thread Olet: ASTM A403 Gr. WP304, WP304L, WP316, WP316L, WP321, WP347, WP904L
  • Mild Steel Thread Olet: ASTM A234 Gr. WPB, IS 2062
  • Carbon Steel Thread Olet: ASTM A234 Gr. WPB, A105
  • Duplex Steel Thread Olet: ASTM / ASME A/SA 182 F 51, F 53, F 55, F 60, F 61
  • Super Duplex Steel Thread Olet: ASTM A403 Gr. WP51 (UNS S31803), WP53 (UNS S32750), WP55 (UNS S32760)
  • Nickel Alloy Thread Olet: ASTM / ASME SB 160, SB 472
  • Grade: HASTELLOY C 276, HASTELLOY C22, MONEL 400, ALLOY 20, SMO 254, INCO 825, INCO 625, INCO 600, INCO 800, 20CB3, NI-200, CU/NI 90/10, CU/NI 70/30

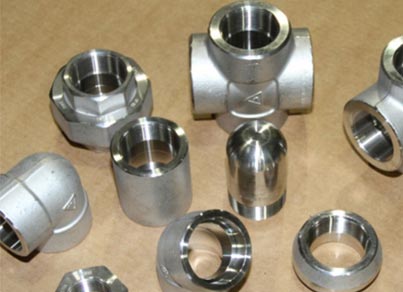

  • Socket Weld


  • Socket Weld Size: 1/8" to 4"
  • Socket Weld Standard: ANSI B16.11, MSS SP-79, MSS SP-83, BS 3799, IS 2062
  • Socket Weld Types: Standard Socket Weld, Reinforced Socket Weld
  • Socket Weld Material Specification: ASTM, ASME, DIN, ISO, BS, JIS
  • Wall Thickness: Sch. 5S to Sch. XXS
  • Socket Weld GRADE:
  • Stainless Steel Socket Weld: ASTM A403 Gr. WP304, WP304L, WP316, WP316L, WP321, WP347, WP904L
  • Mild Steel Socket Weld: ASTM A234 Gr. WPB, IS 2062
  • Carbon Steel Socket Weld: ASTM A234 Gr. WPB, A105
  • Duplex Steel Socket Weld: ASTM / ASME A/SA 182 F 51, F 53, F 55, F 60, F 61
  • Super Duplex Steel Socket Weld: ASTM A403 Gr. WP51 (UNS S31803), WP53 (UNS S32750), WP55 (UNS S32760)
  • Nickel Alloy Socket Weld: ASTM / ASME SB 160, SB 472
  • Grade: HASTELLOY C 276, HASTELLOY C22, MONEL 400, ALLOY 20, SMO 254, INCO 825, INCO 625, INCO 600, INCO 800, 20CB3, NI-200, CU/NI 90/10, CU/NI 70/30
  • Nominal
    Diameter
    Depth of
    Socket
    Dimension of
    Socket
    Wall Thickness End Wall Thickness
    Cmin Kmin
    DN

    NPS

    (inches)

    Jmin d1 3000LB 6000LB 9000LB 3000LB 6000LB 9000LB
    6 1/8 10 10.7 3.2 3.5 - 5 6.5 -
    8 1/4 10 14.1 3.3 4 - 5 6.5 -
    10 3/8 10 17.5 3.5 4.4 - 5 6.5 -
    15 1/2 10 21.8 4.1 5.2 8.2 6.5 8 11
    20 3/4 13 27.4 4.3 6.1 8.6 6.5 8 12.5
    25 1 13 34.2 5 7 10 9.5 11 14
    32 1.1/4 13 42.9 5.3 7 10.6 9.5 11 14
    40 1.1/2 13 48.3 5.6 7.8 11.2 11 12.5 16
    50 2 13 61.1 6.1 9.5 12.2 12.5 16 19
    65 2.1/2 16 76.9(73.8) 7.7 12.5 - 16 19 -
    80 3 16 89.8 8.3 13.8 - 19 22 -
    100 4 19 115.5 9.4 - - 22 28.5 -



    Pipe Fittings Specification


    Pipe Fittings Specifications ASTM A403/ ASME SA403
    Pipe Fittings size Seamless Butt Weld Fittings : 1/2" - 10"
    Welded Butt Weld Fittings : 1/2" - 48"
    Pipe Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
    Buttweld Fittings Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
    Buttweld Pipe FittingsType DN15-DN1200
    ASTM A403 SS Buttweld Fitting Connection Welding
    Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP Pipe Fitting
    Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP Buttweld Fitting
    ASTM A403 SS Buttweld Fittings Manufacturing process Push, Press, Forge, Cast, etc.
    Buttweld Pipe Fittings Test Certificates EN 10204/3.1B
    Raw Materials Certificate
    100% Radiography Test Report
    Third Party Inspection Report, etc
    SA 403 Pipe Fittings Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
    Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend
    We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

    Manufacturing Standards of Stainless Steel Buttweld Fittings


    ASME B16.9 ASTM A403 Pipe Fittings Factory-Made Wrought Buttwelding Fittings Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
    ASME B16.28 Short Radius Elbows, Short Radius 180-deg Returns
    MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
    Mss SP75 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers
